Stationary furnaces

Some of the features of induction furnaces produced by Sepahan Elgha:

Furnace bodies

Furnace bodies are produced in two models. Stainless-Steel bodies without yokes (maintenance free) from 500kg to 2ton and Steel-Frame bodies with yokes, from 1ton to 30tons.

  • Water collectors with easy access.
  • Separate valve for each path for ease of maintenance.
  • Thermostats in all outputs of the cooling system.
  • Easy access to coils and yokes.
  • Possibility of replacing the furnace body without the need to separate the furnace base from the foundation.

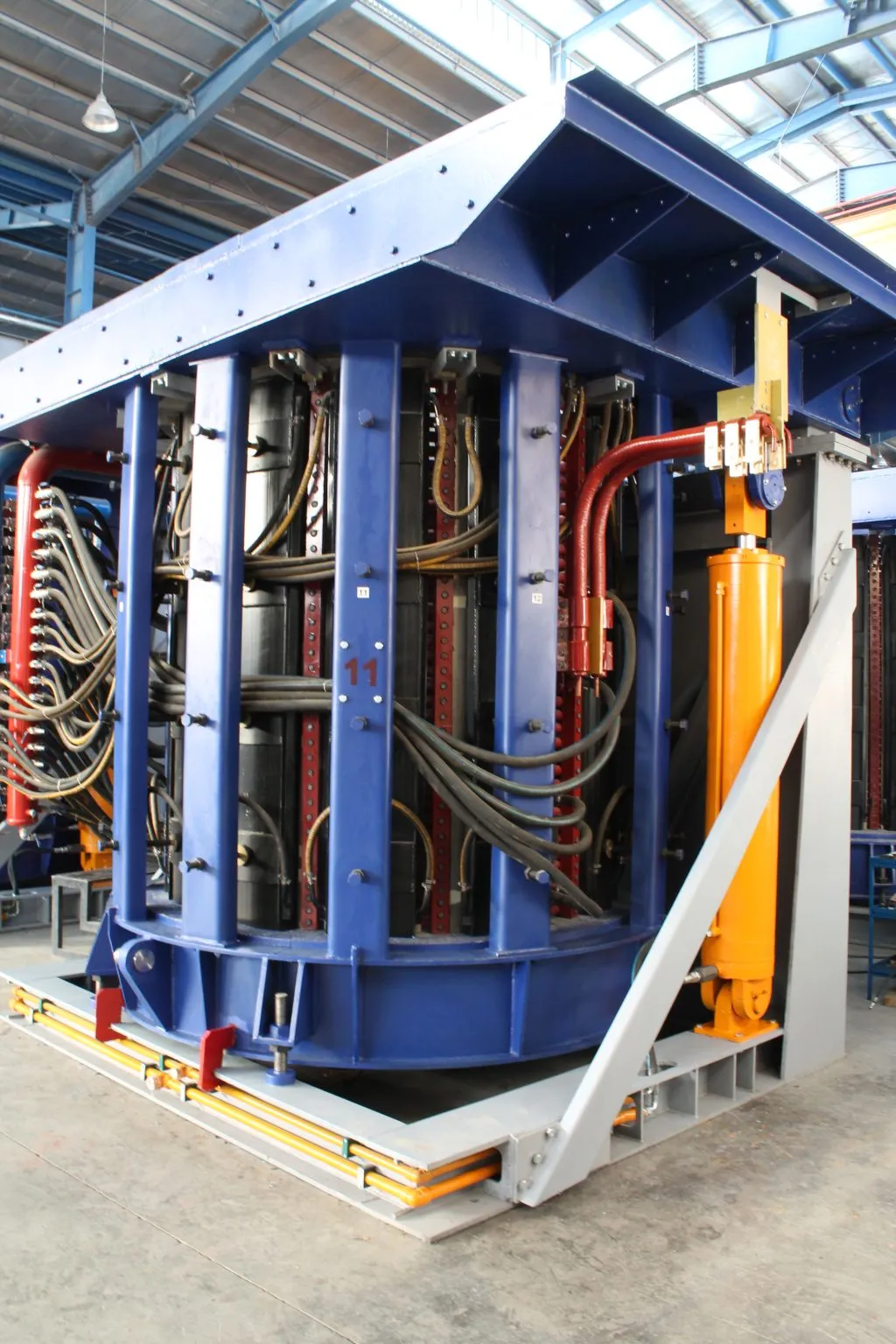

stationary induction furnaces

MFT frequency converters

  • Use of rectifiers with 3, 6, and 12 phases to limit harmonic distortion.
  • Utilization of SCR switches, parallel and series-parallel technology in the inverter output.
  • Optimal use of semiconductor components to maximize their lifespan.
  • Control system using PLC, digital display, and fully digital control board.
  • Fully digital settings configuration.
  • Ability to connect to the internet or intranet network via Wi-Fi, mobile network, or LAN (optional).
  • Remote access and monitoring of device operation (optional).
  • Automatic and intelligent fault detection.
  • Ability to operate at rated power throughout the melting period.
  • Leakage detection circuit using both hardware and software methods.
  • Power control from 0 to 100% without the need for reactive power compensation.
  • Average power factor above 0.95.
electrical panel
Products Table
ModelCapacity
(kg)		Frequency
(Hz)		Power
(kW)		Melt Rate Steel
(1650 °C)
(t/h)
MFT250-500500600-1000250410
MFT350-500350580
MFT600-1T10006001100
MFT750-1T7501400
MFT900-1T515009001700
MFT1.25K-2T2000300-60012502350
MFT1.75K-3T300017503300
MFT2K-4T400020003770
MFT2.5K-5T500025004850
MFT3K-6T600030005800
MFT4K-10T1000040007770
MFT5K-12T1200050009700
MFT6K-15T15000100-300600011600
MFT8K-20T20000800015500
MFT10K-25T250001000019400
MFT15K-30T300001500029100

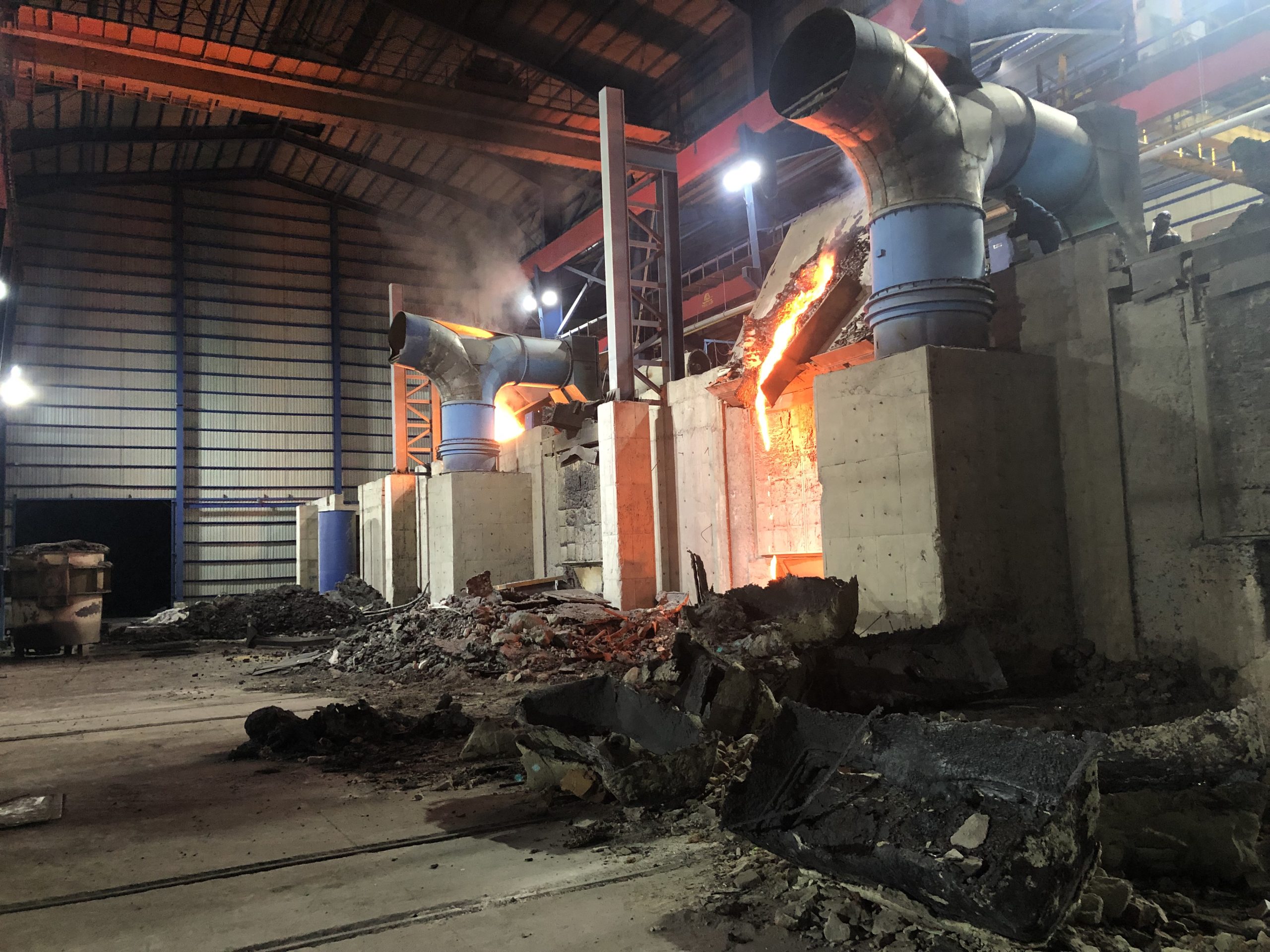

تصویر 25t Shahrood scaled
